The 5053 series are miniature crystal oscillator module ICs supported 80MHz to 170MHz fundamental oscillation mode.
The Oscillator circuit stage has voltage regulator drive, significantly reducing current consumption and crystal current, compared with existing devices, and significantly reducing the oscillator characteristics supply voltage dependency.
There are 3 pad layout package options available for optimized mounting, making these devices ideal for miniature crystal oscillators.
Products
5053 series
[Crystal Oscillator Module ICs]
Overview
Specifications
| Oscillator type | For SPXO | |
| Oscillation frequency | Fundamental | 80MHz～170MHz |
| Operating voltage | 1.6V～3.63V | |
| Operating temperature | -40℃～+105℃ | |
| Output type | CMOS | |
| Divider | fOSC | |
| Standby mode INHN=”Low” | Oscillator | Stopped |
| Output | Hi-Z | |
| Chip size | 0.60mm×0.57mm | |
| PAD layout type | FCB, WBⅠ, WBⅡ | |
| Package | Wafer form, Chip form | |
Version
●For fundamental oscillator
Oscillation frequency*1 [MHz] | Recommended C0 value [pF] | Operating voltage [V] | Operating temperature [̊C] | Output type | Output frequency | PAD layout and version name | ||
| FCB | WBⅠ | WBⅡ | ||||||
| 80 to 133 | 1 to 2 (with C0 cancel circuit) | 1.60 to 3.63 | 40 to 105 | CMOS 15pF max. | fosc | (5053A1) | (5053B1) | 5053C1 |
| 100 to 170 | 2.25 to 3.63 | (5053AP) | (5053BP) | 5053CP | ||||
*1. The recommended operating frequency is a yardstick value derived from the crystal used for NPC characteristics authentication. However, the oscillator frequency band is not guaranteed. Specifically, the characteristics can vary greatly due to crystal characteristics and mounting conditions, so the oscillation characteristics of components must be carefully evaluated.

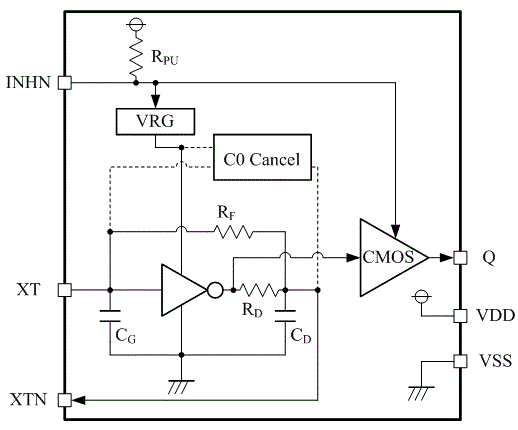

Block Diagram
